process control instruments

Model : HTP 196 Display : 3 line 4digit ,0.5” 7 segment LED Range : 0 to 60°C / 0to100%RH/ 0 to 2000mbarA Resolution : 0.01 or 0.1°C / 0.1% RH / 1 mbar Accuracy : ± 0.5 °C / ± 3%RH / ± 0.5 % FS Mounting : Wall mountable Power supply : 90 to 270V AC Dimension : 100 mm W x 250 mm H x60 mm D Weight : 640gms Sensor : P T-100, Humidity & Pressure sensor with 2 meter cable

Model : HTP 196 Display : 3 line 4digit ,0.5” 7 segment LED Parameter: Temperature, Humidity & Absolute or differential (pressure) Range : 0 to 60°C / 0to100%RH / 0 to 2000mbar A or ±50pa Resolution :0.01°C / 0.1%RH / 1mbar A (or) 0.01pa Accuracy : ± 0.5°C / ± 3%RH / ± 0.5 % FS Set point: Low & High for all three Parameter Relay: 2 relay with 5A rating with selectable parameter Sensor : PT-100, Humidity & Temperature sensor with 2 meter cable Operating Environment: 0 to 50°C / 20 to 95%RH Non condensing Mounting : Wall mountable with key hole provision Supply : 90 to 270V AC / 50Hz Buzzer: Inbuilt Dimension : 100 mm W x 250 mm H x60 mm D Weight : 640gms

Model: FI 593 Display : 16 Character X 2 Line LCD Display Input (factory settable): 4-20mA / 0-20mA / 0-2.5V / 0-5V / 0 - 10V / 0 - 75mV (any One) Accuracy at 25°C: ± 0.1% of FS Resolution : 1 / 0.1 / 0.01 (any One User Selectable) Display Modes: Flow Rate (FR) & Total Flow (TF) Display Range: 0 - 9999 (4 Digits) for FR , 0 - 99999999(8 Digits) for TF Units: m³ , Liter, Gallons (Selectable) Voltage Drop: 1 V Maximum (Applicable only for current input models) Input Impedance: 18K Ohms (Applicable only for voltage input models) Conversation Modes:Linear, Square Root (User Selectable) Flow Rate Time Base: Seconds, Minutes, Hours (Selectable) Sensor Supply: 24 V DC / 100mA Max. Power Supply: 90 to 270 V AC Operating Environment: 0 to 60°C / 5 to 95 % RH Non Condensing Frequency : 50 / 60 Hz

Model: FI 594 Display : 16 Character X 2 Line LCD Display Input: Pulse Accuracy at 25°C: ± 0.1% of FS Display Modes: Flow Rate (FR) , Total Flow (TF) & Batch Total (BT) Display Range: 0 - 99999(5 Digits) for FR , 0 - 99999999(8 Digits) for TF FR Resolution: 1 / 0.1 / 0.01 (any One Selectable) TF Resolution: 1 / 0.1 / 0.01 / 0.001 (any One Selectable) Units: m³ , Liter, Gallons (Selectable) Flow Rate Time Base: Seconds, Minutes, Hours (Selectable) Password Protection: Provided for User & Supervisor separately Relay Output (optional): 2 Relay Output (5A rated)with Individual Assignment settings for FR, TF & BT) Retransmission Output (optional): Opto isolated 4 - 20mA or 0 - 10V DC (any one factory Presettable) Communication: RS 485 (2 wire) / MODBUS RTU / RS 232 (any one factory Presettable) PC Software: Monitoring, Data logging, Report & Graph Sensor Supply: 5 or 12 V DC / 100mA Max. Operating Environment: 0 to 50 Deg C / 20 to 95 % RH Non Condensing Power Supply: 90 to 270 V AC, 50/60Hz

Model : HTP-190 Display : 1 line , 4digit 0.5” , 7 segment LED Parameter : Temperature Range : 0 t o 60°C Resolution : 0.0 1°C Accuracy : ± 0.5 °C Set point : Low & High Relay : 1 relay with 5Arating Weight : 520gms Sensor : PT-100 sensor with 2 meter cable Operating Environment: 0 to 50°C / 20 to 95%RH Non condensing Supply : 90 to 270V AC / 50Hz Dimension: 100 mm W x 250 mm H x60 mm D Mounting : Wall mountable with key hole provision Buzzer: Inbuilt

Model : HTI 197 Display : 2 line , 4 digit , 0.5’’ 7 segment LED Parameter : Temperature & Humidity Range : 0 to 60°C / 0 to 100%RH Resolution : 0.01°C / 0.1%RH Set point: Low & High for both Parameter Accuracy : ± 0.5 °C / ± 3%RH Relay Output ( optional) : 2 relay with 5A rating Sensor : PT-100 & Humidity sensor with 2 meter cable Operating Environment: 0 to 50°C / 20 to 95%RH Non condensing Supply : 90 to 270V AC / 50Hz Dimension : 100 mm W x 250 mm H x 60 mm D Mounting : Wall mountable with key hole provision Buzzer: Inbuilt Weight : 540gms

Model: DTJ 71 A (4” DISPLAY) & DTJ 71 B (8”DISPLAY) Display: 4 Digit 4” & 8” Red 7 seg LED ( 1” & 2” on request) Range: 99.59, 999.9, 9999 secs / mins / hrs (programmable) Resolution: 0.01 sec / min / hrs External Input: START / HOLD / RESET (potential free contact inputs) Relay output: 2 NO, 2 NC 5 A Rated relay Power Supply: 230V AC / 50Hz Working temperature: 0 – 50°C

Model : DL 96 / DL 97 No. of Channel : 8 or 16 or 32 Channel Sampling Rate : 100 msec (per channel) Memory : 20000 Readings (per channel) Data Download : USB Pen Drive / PC / Dot Matrix Printer Operating Voltage : 100–240 VAC @ 50 / 60 Hz Bezel Dimension DL 96 : 100 (H) × 110 (W) mm Bezel Dimension DL 97 : 195 (H) × 295 (W) mm Cut-out Size DL 96 : 92 (H) × 92 (W) mm Cut-out Size DL 97 : 175 (H) × 255 (W) mm Unit Dimension DL 96 : 100 (H) × 110 (W) × 150 (D) mm Unit Dimension DL 97 : 195 (H) × 295 (W) × 80 (D) mm Display DL 96 : 3.5 inch Multi-Color Active Matrix Touch Screen Display Display DL 97 : 8 inch Multi-Color Active Matrix Touch Screen Display Input Pt100 : −199.9 ~ 300.0 °C, Accuracy ±0.5 °C Input K : −100 ~ 1200 °C, Accuracy ±1.2 °C Input J : −100 ~ 1000 °C, Accuracy ±1.2 °C Input N : −100 ~ 1300 °C, Accuracy ±1.2 °C Input T : −100.0 ~ 400.0 °C, Accuracy ±0.8 °C Input S : 0 ~ 1500 °C, Accuracy ±3 °C Input R : 0 ~ 1500 °C, Accuracy ±3 °C Input 0–20 mA : −1999 ~ 9999, Accuracy ±0.15% FS Input 4–20 mA : −1999 ~ 9999, Accuracy ±0.15% FS Input 0–1 V : −1999 ~ 9999, Accuracy ±0.15% FS Input 0–10 V : −1999 ~ 9999, Accuracy ±0.15% FS Weight DL 96 : 0.800 Kg Weight DL 97 : 1.5 Kg

Model: PI – 541A Display: 6 Digit 7 segment RED LED Inputs: 0 - 20 mA, 0 to 75 mV, -10 to 10 V DC, 0 – 4000 Ω (H & L Limit Programmable) RTD - PT 100, PT-1000, Thermocouple - J, K, R, S, T, B, N, E Cold junction Accuracy: ± 0.3°C Resolution: 0.0001 / 0.001 / 0.01 / 0.1 / 1°C Selectable for Analog 0.01°C for RTD and 0.1°C for TC Unit selection: °C / °F (for RTD & TC inputs) Linearization: Programmable custom Linearization provided (1 - 21 points) Input signal filter: 1 – 100% user configurable Cold junction compensation: Automatic inbuilt ‘CJC’ is provided Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Hysteresis, Cyclic Delay Alarm settings: Front key settable Alarm indication : Two LED on front panel Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC for process variable PC communication* (optional): RS 485 (2 wire) MODBUS protocol PC Software* (optional): Monitoring, Data logging, Report & graph Sensor excitation Supply: 24 V DC ±10% @ 100 mA Power supply: 90 to 270 V AC / DC / 50/60 Hz Front panel : IP 65 protection Operating environment: 0 to 50°C / 5 to 95% RH non condensing Overall Dimensions: 48(H) X 96(W) X 110(D) mm Cut out Dimension: 44(H) x 90(W) mm Enclosure: ABS plastic Weight: 350 grams (Approx.)

Model: BW 16D (4” display) & BW 17D (8” display) Display: 6 digit 2”, 4”, & 8” height 7 segment red LED display Range: 0 – 999999 counts Resolution: 1 count / pulse Input: 3-30V DC pulse from Proximity sensor, Photoelectric non-contact sensor, Encoder Potential free contacts, Limit switch, etc.,. Memory backup: Provided if power is failure Input speed: 3.5 kHz (Max.) Sensor supply: 12V DC (±10%) 50mA Power Supply: 230V AC / 50Hz Working temperature: 0 – 50°C Weight: 8 kg

Model: CC 603 - 1 Display: 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display Range (any one): 1 – 20µS, 5 – 200µS, 10 to 2000µS, 1 to 20mS, 5 to 200mS Resolution: 0.01µS to 0.1mS (depends on range) Accuracy: ±1% of range ±1 digit Cell Constant*: 0.01 / 0.1 / 1 (user selectable, depends on range) Temperature Sensor: RTD – PT 100 (3 wire) Temperature Co-efficient: 0 to 3% / °C (user adjustable) Temperature Compensation: Manual / Automatic (-20.0 to +150.0°C) Electrode Input: Conductivity cell on rear panel Set Point – 1 & 2: Two set points with 6 relay status selectable Relay Output: Relay-1 for Setpoint-1, Relay-2 for Setpoint-2 with 5A rating Relay Hysteresis: 0 to 500 counts (user adjustable) (only for High & Low control modes) Relay Cyclic Delay: 0 to 100 seconds (user adjustable) (only for High & Low control modes) Alarm Output (optional): Inbuilt audible buzzer with front key reset Optional Re-Tx Output: Galvanically isolated 4 – 20 mA Optional Comm. Output: Isolated RS-485 Comm. Protocol: MODBUS RTU Operating Environment: -10 to 50°C / 10 to 95% RH non-condensing Power Supply: 90 to 270V AC / DC, 50Hz Dimension: 96 × 96 × 85 mm Cutout Dimension: 92 × 92 mm Weight: 350 grams (Approx.)

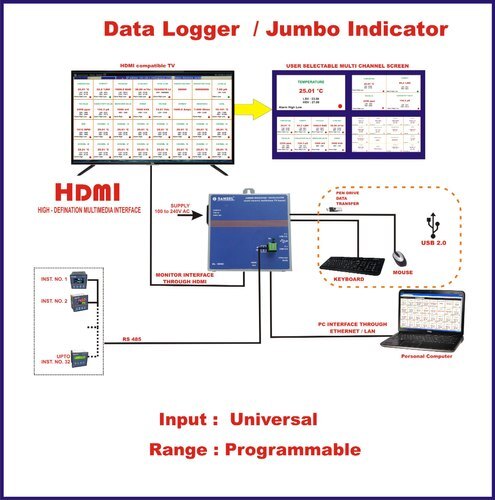

Model : DL 98HD Signal Input : RS 485(2 wire) Input Protocol : Modbus RTU Slave No. of. Channels : 32 FEATURES Ø It replace conventional 7 segment LED Ø Up to 32 input channels display Ø Custom selectable number of input No size limitation- Depends upon customer channels scope(HDMI compatible TV) Ø User configurable RS485 MODBUS setting Ø Low cost Ø User selectable title and Engineering units Ø Universal indicator for any type of industrial Ø Alarm set point and status indication process parameter Ø Adjustable display font size Ø Input from RS485 MODBUS RTU protocol Ø Custom adjustable colour, background, Ø HDMI output for display connectivity display, title and units Ø OLED TV display or any type of HDMI input Ø Inbuilt Data logging facility display device Ø Optional Ethernet output for computer Ø Pen drive option for Data download DISPLAY PARAMETER Temperature * Humidity * pressure * Flow & Total flow * Volume * Level * Production counting * RPM * m/min * Co2 * Volts * Current Power * pH * TDS * Conductivity, etc,. Application » Pharma industries » Automobile industries » Power industries » Petrochemical industries Food industries
