Description
Product details

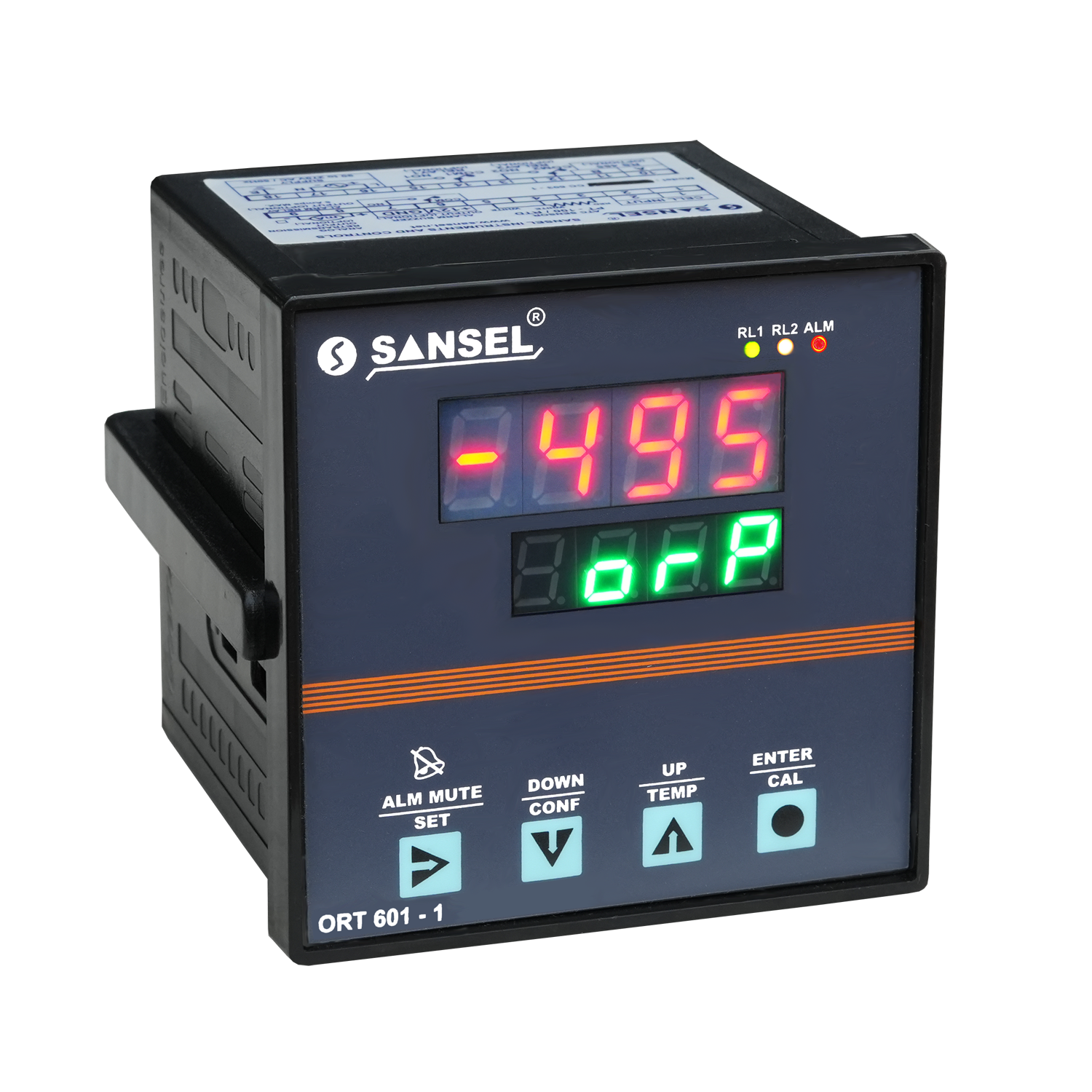

Model: ORT 601-1 Display: 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display Range: -1999 to 1999 ORP Resolution: 1 ORP Accuracy: ± 1 ORP ± 1 digit Electrode Input: Platinum Electrode with BNC Attachment Set Point - 1 & 2: Two Set Point with 6 Relay Status Selectable Relay Output: Relay - 1 for Setpoint - 1, Relay - 2 for Setpoint - 2 with 5A Rating Relay Hysteresis: 0 to 500 ORP (user adjustable) (only for High & Low control modes) Relay Cyclic delay: 0 to 100 seconds (user adjustable) (only for High & Low control modes) Input Impedance: >10¹² Ohms Alarm Output (optional): Inbuilt audible buzzer with front key reset Optional Re. Tx. output: Galvanically Isolated 4 - 20 mA Optional Comm. output: Isolated RS 485 Comm. Protocol: MODBUS RTU Operating Environment: -10 to 50ºC / 10 to 95 % RH Non Condensing Power Supply: 90 to 270V AC / DC 50Hz Dimension: 96 x 96 x 85 mm Cutout Dimension: 92 x 92 mm Weight: 500 grams (Approx.)
