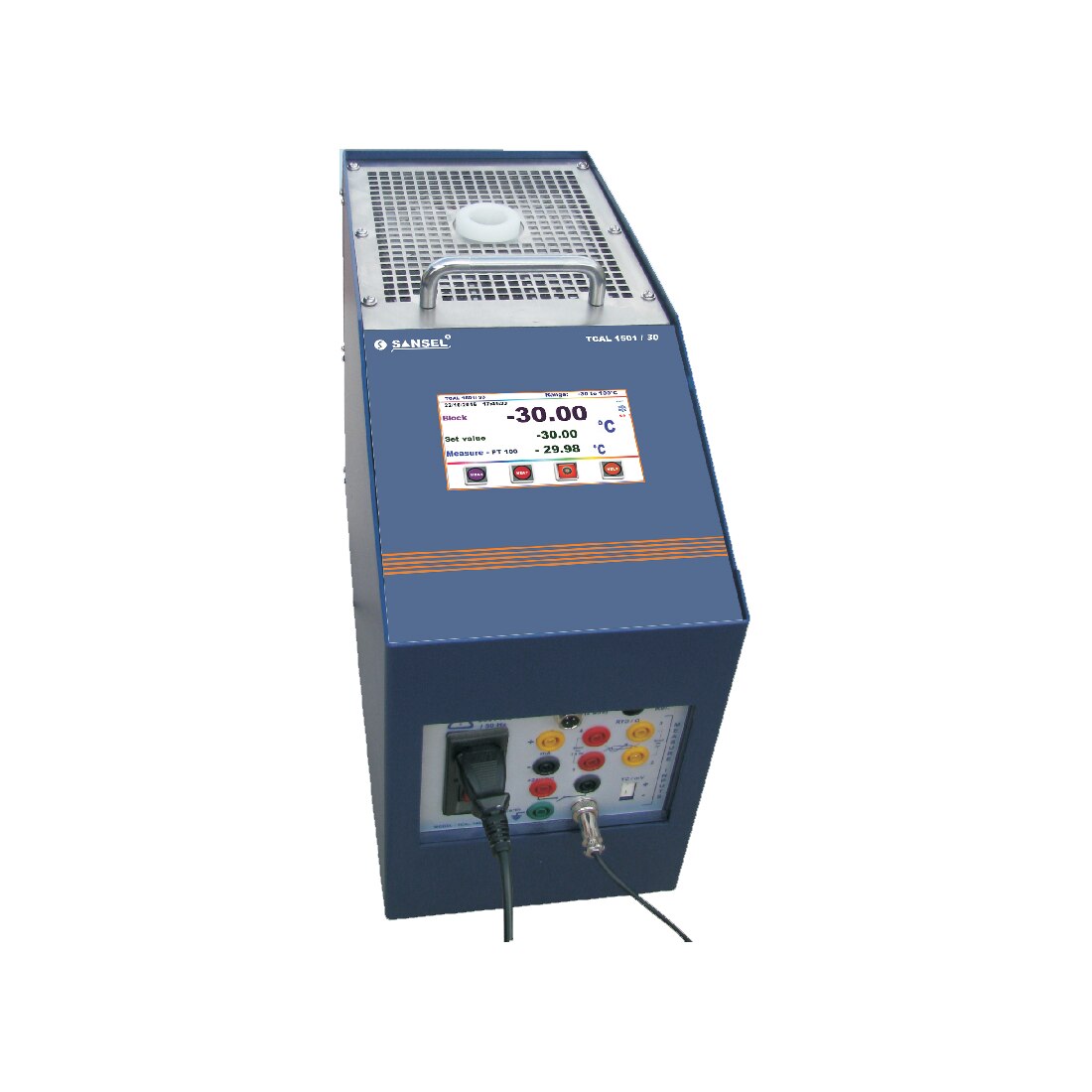

DRY BLOCK TEMPERATURE CALIBRATOR TCAL 1501/-30

Available

Phone Number

08048127413

Please keep 0 before dialling the number.

Email Address marketing1@sansel.net

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Pune,Pune,Pune,Pune

Pune, India, 0

Description

MODEL : TCAL 1501 / -30 Temperature Range : - 30 * to 100 °C Resolution : 0.01 °C Stability : ± 0.02 °C Uniformity : ± 0.2 °C Display : 4.3 inch True TFT DISPLAY with touch screen Heating time (mins) : 20 (Amb. to 100°C) Cooling time (mins) : 25 (25 to -30°C) (100 to 25°C) Time to stabilize (mins) : 10 Well Dimension (dia. xdepth) in mm : 22 x 120 Standard Well Hole in mm : 5.2, 6.2, 6.2 Dimension (L*W*H)in mm (Approx.) : 409 L x 178 W x 357 H Weight ( Approx.) : 12.5 kg (without well insert & Carrying case) Measure inputs : RTD-PT 100 / TC, -J, K, R, S, T, E, B , N / mA /mV / ohms Power Consumption : 500 VA Power Supply : 110 or 230V AC 50/60 HZ Switch test : Provided PC interface : RS 485 (optional)

Other Products

view all

INFRARED BLACK BODY CALIBRATOR FOR HUMAN BODY THERMOMETER BCAL 40

Model : BCAL 40 Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F Surface Mode : 0 to 100 °C / 32 to 212 °F Resolution: 0.01 °C Stability: ± 0.03 °C Display: 3.5 inch True TFT display with touch screen Accuracy : ± 0.3 °C Temperature Read out : °C & °F at a time Heating time : 10 minutes (Amb. to 50 °C) Stabilization time : 10 minutes Aperture area : 25 mm Emissivity : 0.950 Power supply : 90 to 260V AC / DC / 50/60 Hz Power Consumption : less than 100 VA Overall Dimension in mm : 210 x 210 x 140 (L x B x H)(Approx.) Instrument Weight: 3.7 kg

DRY BLOCK TEMPERATURE CALIBRATOR TCAL 1401/-30

Model TCAL 1401 / -30 Temperature Range -30* to 100°C (* @ Ambient 25 °C) Resolution 0.1 °C Stability ± 0.1 °C Axial + Radial Uniformity Better than ± 0.3 °C Display 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys Accuracy Better than ± 0.3°C Temperature Read out °C Heating time 20 mins (Amb. To 100 °C) Cooling time 25 mins (25 to -30 °C) Stabilization time 10 minutes Well Dimension(dia. X height) 22x 120 mm Standard well holes in mm 5.2, 6.2, 6.2, Power supply 230V AC ± 10% / 50Hz (Optional 110V AC) Power Consumption 500 VA Overall Dimension in mm 490x 178x 357(L x B x H)(Approx.) Instrument Weight 12.5kg(without well insert)(Approx.)

SUB ZERO DRY BLOCK TEMPERATURE CALIBRATOR(MINIATURE) TCAL 1402/-20

Model TCAL 1402 / -20 Temperature Range -15 to 75°C (extended model available upto 110°C on request) (* @ Ambient 25°C) Resolution 0.1 °C Stability ± 0.1 °C Axial + Radial Uniformity Better than ± 0.3 °C Display 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys Accuracy ± 0.3 °C Temperature Read out °C Heating time 15 mins (Amb. to 75°C) Cooling time 20 mins (25 to -15°C) Stabilization time 3 minutes Well Dimension(dia. X height) 16 x 100 mm , 80 mm (immersion depth) Standard well holes in mm 5.2 , 6.2 Power supply 230V AC ± 10% / 50Hz (Optional 110V AC) Power Consumption 500 VA Overall Dimension in mm 260 x 145x 290 (L x B x H)(Approx.) Instrument Weight 8 kg(Approx.)
