LIQUID TEMPERATURE CALIBRATOR TCAL 1501/250

Calibrators by SANSEL

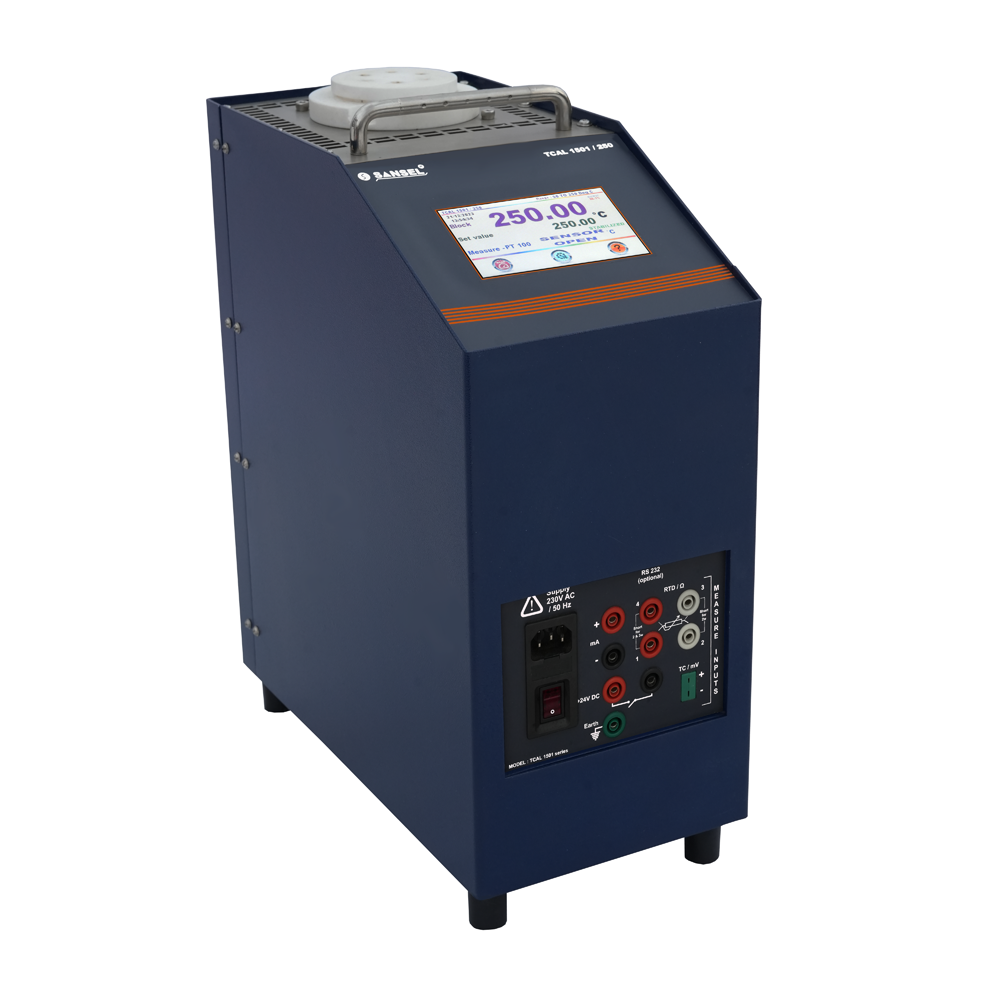

LIQUID TEMPERATURE CALIBRATOR TCAL 1501/250

Available

Description

Model Tcal 1501 / 250 Display 4.3 inch true TFT display with touch screen Working Range Ambient to 250 °C / ( 32 to 300° F ) Resolution 0.01 °C Stability ± 0.03 °C Accuracy better than ± 0.3 °C Uniformity ± 0.1 °C Measure inputs RTD-PT 50,PT 100,PT500,PT1000 / TC -J, K, R,S,T,E,B,N/mA/mV/ ohms Chamber dia x depth 80 x 140 Testing dia x depth 60 x 120 mm Temperature Medium Silicon Oil Multi Hole Well Provided for Different Types of Sensors Dimension in mm 340 x 175 x 425 (L* W * H) (Approx.) Power Supply 230V AC ± 10% / 50Hz (Optional 110V AC)

Keywords

Other Products

view all

PRECISION HUMIDITY & TEMPERATURE GENERATOR HCAL 1104U

Model : HCAL 1104U Display : 4.3 inch True TFT touch screen display Humidity Range : 5 to 95% RH Temperature Range : 10 to 50 °C Stability : ± 0.05 ° C/± 0.2% RH @ 25 ° C Resolution : 0.01 %RH / 0.01°C Uniformity : ± 0.2 ° C/± 0.3% RH @ 25 ° C Chamber Size : 230 mm dia X 200 depth Test Chamber Size : 200 mm dia X 170 mm D (8.5 L) Construction : inner chamber SS 310/ outer MS powder coating Dimension : 436 mm L X 676 mm W X 368 mm H(Approx) Weight : 40 kg (Approx) Supply : 230 V AC

RPM INDICATOR RP 491

Model RP 491 3 - 30V DC from Proximity Sensor, Photoelectric Non Contact Input Sensor, Encoder,Potential Free Contacts, Limit Switch etc., Input Speed 3.5 kHz (Max.) Range 0 - 9999 RPM / RPS / RPH Resolution 0.001, 0.01, 0.1,1 RPM / RPS / RPH (selectable) Relay Output 2 NO ,2 NC 5A Rated Relays(power ON Delay & Hysterisis provided) Re Transmission(optional) Opto isolated Analog output 4-20mA or 0- 10V DC Sensor Supply 12V DC (±10%) 50mA Accuracy ± 0.05 % (± 1 count) Display 4 Digit 0.5”seven Segment Red Led Working temperature 0 - 50 ºC Power Supply 90 to 270V AC / DC 50Hz Dimension 96 x 96 x 65 mm Weight 200 grams (Approx.)

HIGH PRECISION PRESSURE CALIBRATOR PCAL 1300/1000

Model : Pcal 1300 / 1000 Bar Range (bar) : 0 to 1000 Bar Pressure media : Oil or Water Pressure pump : HP 01 Display : 128 x 64 COG Graphic LCD with White LED Back light Pressure Port : 2 X 1/4” BSP Female Pump dimension in mm (Appox.) : 340 x 240 X 320 (L X W X H) Resolution (bar) ; 6 digit user selectable Instrument Port : ¼ BSP Male x 10 mm long Instrument dimension : 100 x 100 x 55 (W x H x D) mm Instrument Weight : 400gms (Appox.) Stability time : 1 to 2 mins Accuracy : ± 0.05%FS Pressure units * (selectable) : bar, mbar, Mpa, kpa, kg/cm², inHg, cmHg, mmHg,mH2o, ftH2o,inH2o, cmH2o,mmH2o Pressure Zero : One touch zero provided on front key Pressure Peak : Maximum &minimum with user reset option Pressure overflow : FS X 2 (Max.) Pressure burst : FS X 3 (Max.) Temp.Measure : RTD -PT 100 (2,3,4, wire selectable) Measure : 0-24 mA (scalable) Display scale : -99999 to 99999 counts (for mA measure input) Switch test : Provided Display Hold : One touch hold provided on front key Power Supply : 9V DC ±5% / 200mAh Rechargeable battery with battery life 4hours with out back light( or) 9V DC adapter /230V AC supply operated Pump Weight (gms)(Approx.) : 700 gms Pc Interface : RS 485 Pc Software : Windows based semi automatic calibration software (optional) Pump Model : HP 01 Pressure Range : 0 to 1000 Bar Pressure Media : Oil or Water
