Humidity Calibration.

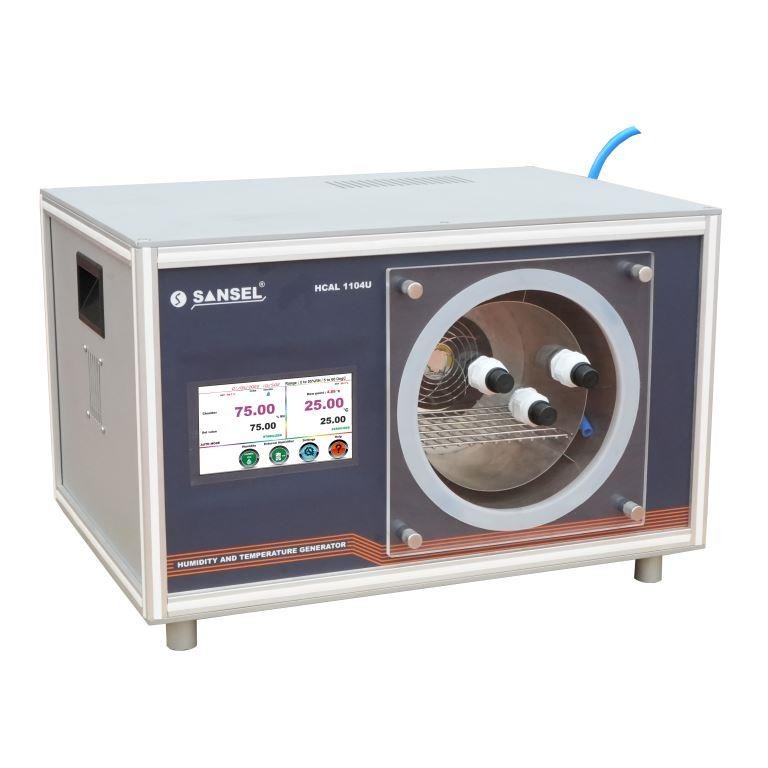

The HCAL 1104U is a precision generator of controlled
Humidity and Temperature environment inside the chamber.
It has a huge chamber size to perform a rapid and
easy calibration of multiple portable instruments, sensors,
transmitters, and data loggers of different manufacturers.
The HCAL 1104U is to generate a range from 5°C to 60°C / 3%
RH to 95% RH and Psychometric Calculated Dew point
indication range from -30°C to 45°C. It has the advantage of an external Humidifier for easy maintenance and refilling of
water, and Semi portable and onsite transportable.
The HCAL 1104U works in the principle of a mixed flow
method for generating the Humidity. A desiccant cell is used
to De-Humidify the chamber for low Humidity and Humidifier
generates high Humidity. A solid-state Peltier element is
used for heating and cooling the chamber. The HCAL 1104U
improved version has metrology-level performance in terms
of Control stability and uniformity gradients.
