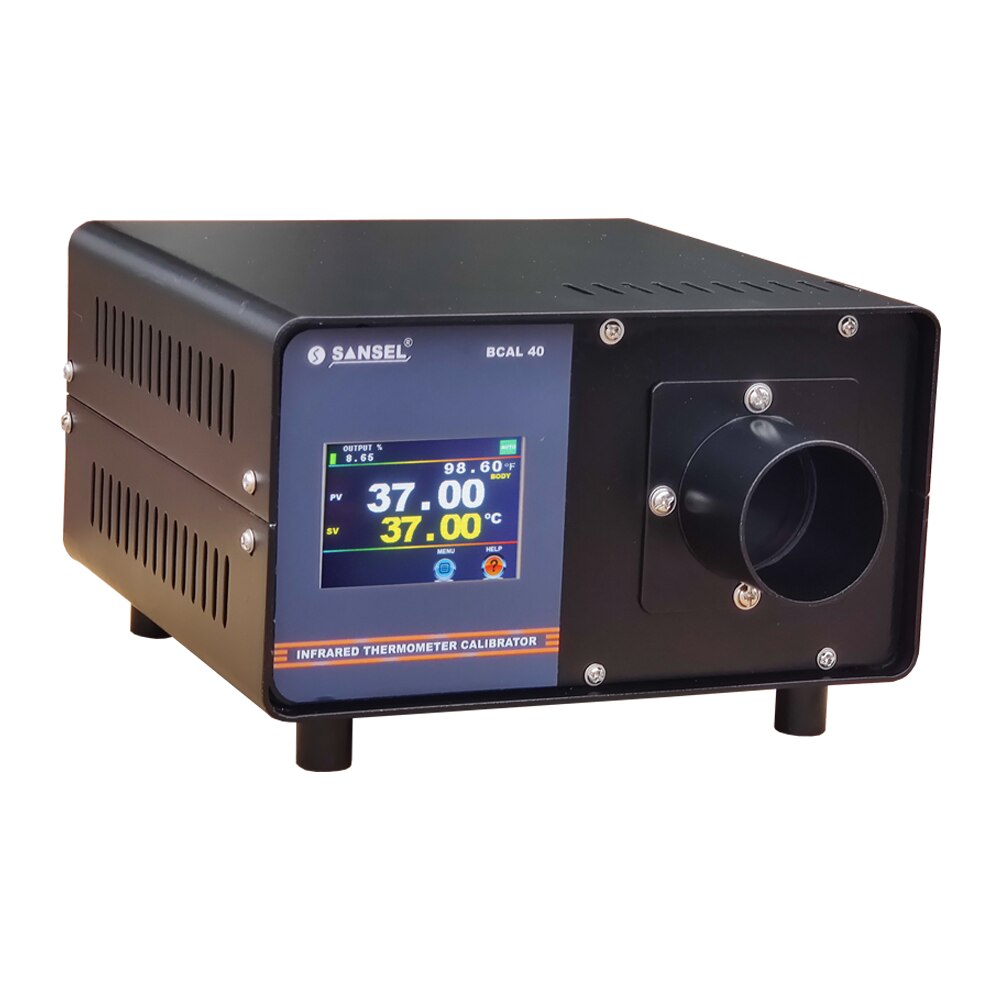

INFRARED BLACK BODY CALIBRATOR FOR HUMAN BODY THERMOMETER BCAL 40

Available

Description

Model : BCAL 40 Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F Surface Mode : 0 to 100 °C / 32 to 212 °F Resolution: 0.01 °C Stability: ± 0.03 °C Display: 3.5 inch True TFT display with touch screen Accuracy : ± 0.3 °C Temperature Read out : °C & °F at a time Heating time : 10 minutes (Amb. to 50 °C) Stabilization time : 10 minutes Aperture area : 25 mm Emissivity : 0.950 Power supply : 90 to 260V AC / DC / 50/60 Hz Power Consumption : less than 100 VA Overall Dimension in mm : 210 x 210 x 140 (L x B x H)(Approx.) Instrument Weight: 3.7 kg
