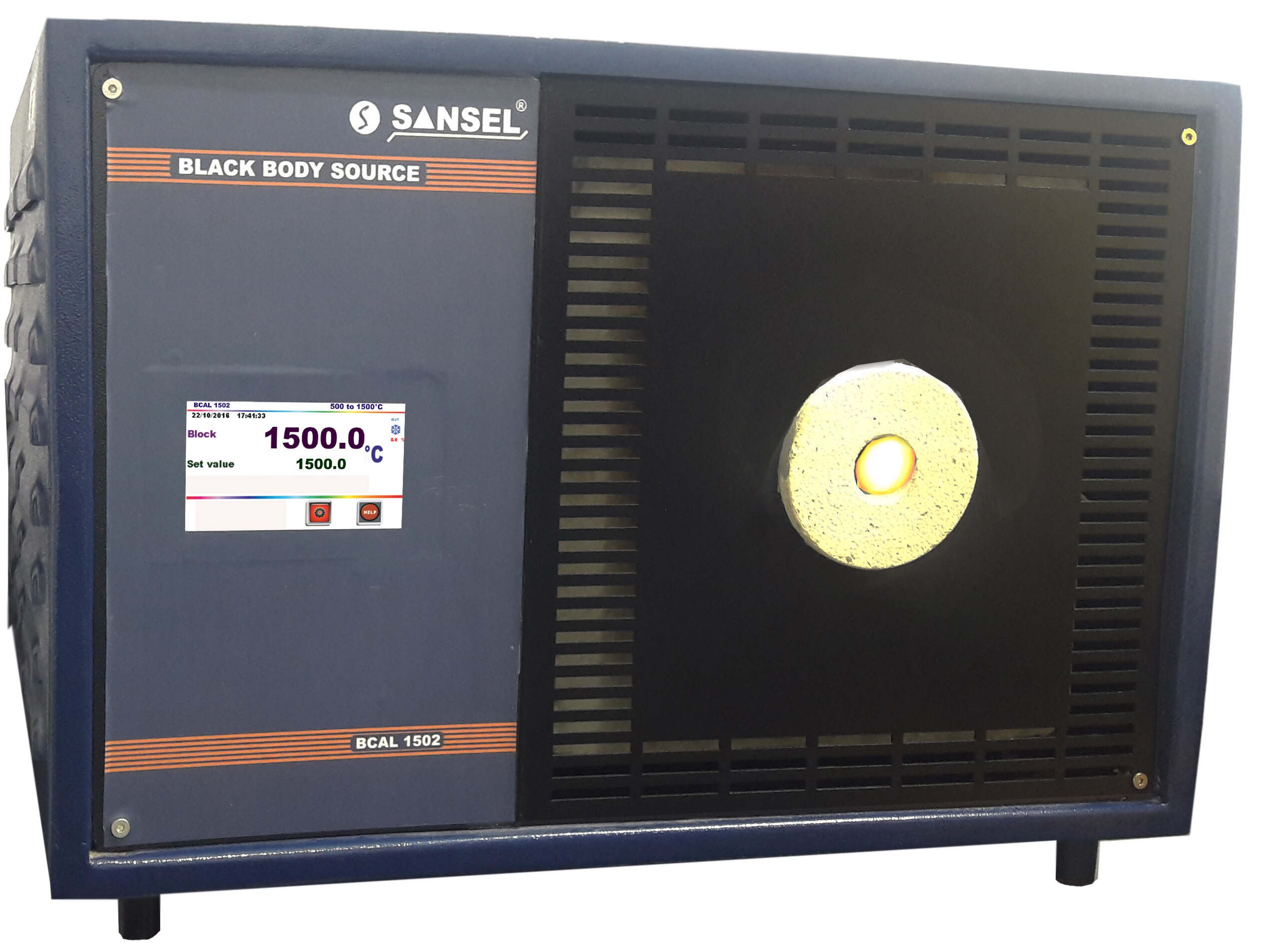

INFRA RED BLACK BODY TEMPERATURE CALIBRATOR BCAL 1502

Calibrators by SANSEL

INFRA RED BLACK BODY TEMPERATURE CALIBRATOR BCAL 1502

Not available

Description

MODEL : BCAL1502 Temperature Range : 500 to 1500°C Resolution : 0.1°C Stability : ± 1 Display : 4.3 inch True TFT colour display with touch screen Accuracy : ± 1 % of reading Bath Temperature Control : Digital Temperature Controller with Auto Tune PID Algorithm Temperature Read Out : °C Aperture area :30 mm Emissivity : 0.950 Power Supply : 230V AC ± 10% / 50Hz (Optional 110V AC) Power Consumption : 4 KVA Dimension (W*D*H) (Approx.) 580mm W x 450mm D x 390205mm H Instrument Weight (Approx.) : 15 kg
