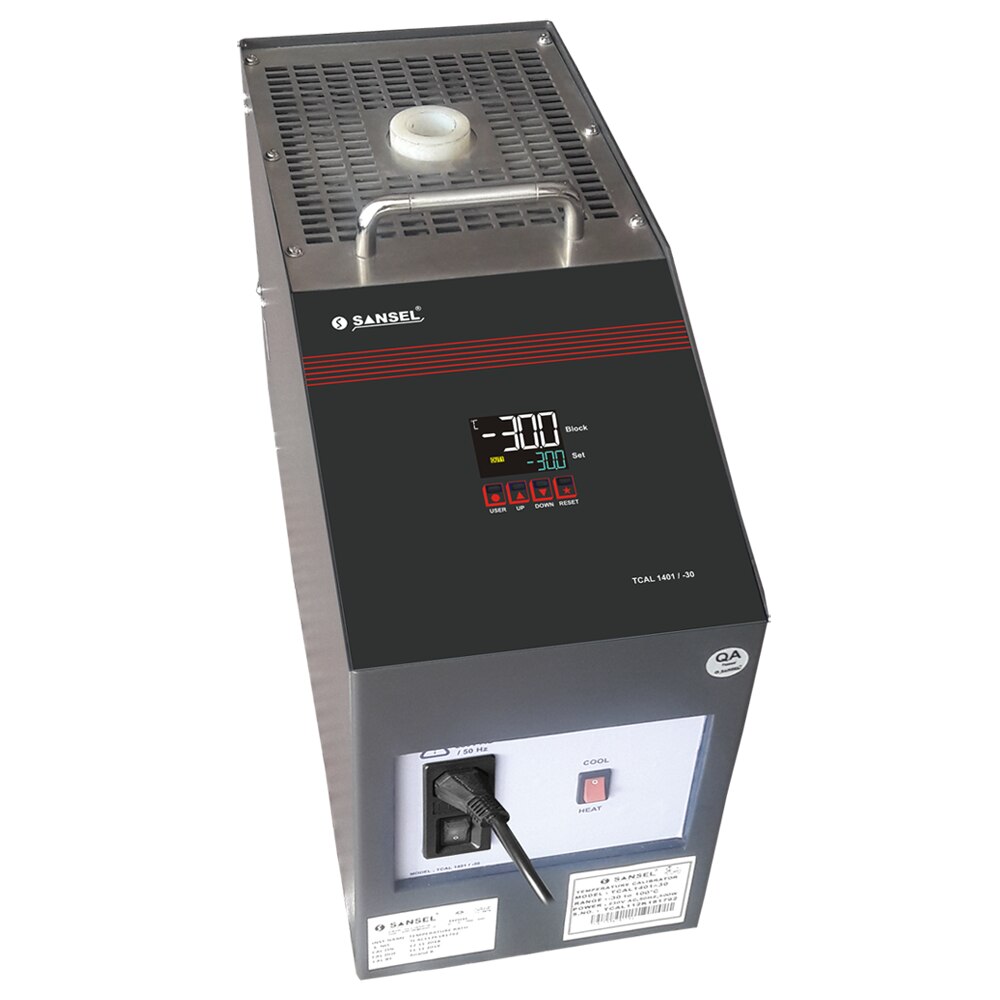

DRY BLOCK TEMPERATURE CALIBRATOR TCAL 1401/-30

Available

Phone Number

08048035797

Please keep 0 before dialling the number.

Email Address marketing1@sansel.net

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Hyderabad,Hyderabad,Hyderabad,Hyderabad

Hyderabad, India, 0

Description

Model TCAL 1401 / -30 Temperature Range -30* to 100°C (* @ Ambient 25 °C) Resolution 0.1 °C Stability ± 0.1 °C Axial + Radial Uniformity Better than ± 0.3 °C Display 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys Accuracy Better than ± 0.3°C Temperature Read out °C Heating time 20 mins (Amb. To 100 °C) Cooling time 25 mins (25 to -30 °C) Stabilization time 10 minutes Well Dimension(dia. X height) 22x 120 mm Standard well holes in mm 5.2, 6.2, 6.2, Power supply 230V AC ± 10% / 50Hz (Optional 110V AC) Power Consumption 500 VA Overall Dimension in mm 490x 178x 357(L x B x H)(Approx.) Instrument Weight 12.5kg(without well insert)(Approx.)

Other Products

view all

PRECISION HUMIDITY & TEMPERATURE GENERATOR HCAL 1104U

Model : HCAL 1104U Display : 4.3 inch True TFT touch screen display Humidity Range : 5 to 95% RH Temperature Range : 10 to 50 °C Stability : ± 0.05 ° C/± 0.2% RH @ 25 ° C Resolution : 0.01 %RH / 0.01°C Uniformity : ± 0.2 ° C/± 0.3% RH @ 25 ° C Chamber Size : 230 mm dia X 200 depth Test Chamber Size : 200 mm dia X 170 mm D (8.5 L) Construction : inner chamber SS 310/ outer MS powder coating Dimension : 436 mm L X 676 mm W X 368 mm H(Approx) Weight : 40 kg (Approx) Supply : 230 V AC

PRECISION HUMIDITY & TEMPERATURE GENERATOR HCAL 1103U

Model : HCAL 1103U Display : 4.3 inch True TFT touch screen display Humidity Range : 5 to 95% RH Temperature Range : 10 to 50 °C Stability : ± 0.05 ° C/± 0.2% RH @ 25 ° C Resolution : 0.01 %RH / 0.01°C Uniformity : ± 0.2 ° C/± 0.3% RH @ 25 ° C Chamber Size : 230 mm dia X 200 depth Test Chamber Size : 200 mm dia X 170 mm D (8.5 L) Construction : inner chamber SS 310/ outer Aluminium anodized Dimension : 436 mm L X 676 mm W X 368 mm H(Approx) Weight : 40 kg (Approx) Supply : 230 V AC

Electro-Technical Calibration Service

We are a leading service provider for calibration of various types of parameters in all industries and our lab is accredited by (NABL)National Accreditation Board for Testing and Calibration laboratories from Chennai, Tamil Nadu, India. Voltage : 1 mV to 1000 V AC/DC Current : 10 µA to 1000 A AC/DC TC, RTD : PT-100,J,K,R,S,T,E,B,N Resistance : 1 ohm to 100 G ohm Frequency : 1 Hz to 10 MHz Capacitance : 10 nF to 1 µF Type of Instruments Calibrated Multi Product Calibrator Multi Function Calibrator Digital Multimeter Frequency Counter Signal Generator Decade Resistance Box Meggar Power Supplies Analog Voltmeter/Ammeter Digital Voltmeter/Ammeter AC/DC Clamp meter Temperature Indicator/controller I/P,P/I Convertor Valve Positioner Process Flow Indicator LCR Meter Process Flow Totalizer, etc., High Voltage 1 kV to 30 kV Type of Instruments Calibrated AC/DC High Voltage source Timer 1s to 99999s Type of Instruments Calibrated Digital Timer Analog Timer Stop Watch, etc., Note: Price May vary based on quantity and instruments
