Calibrators by SANSEL

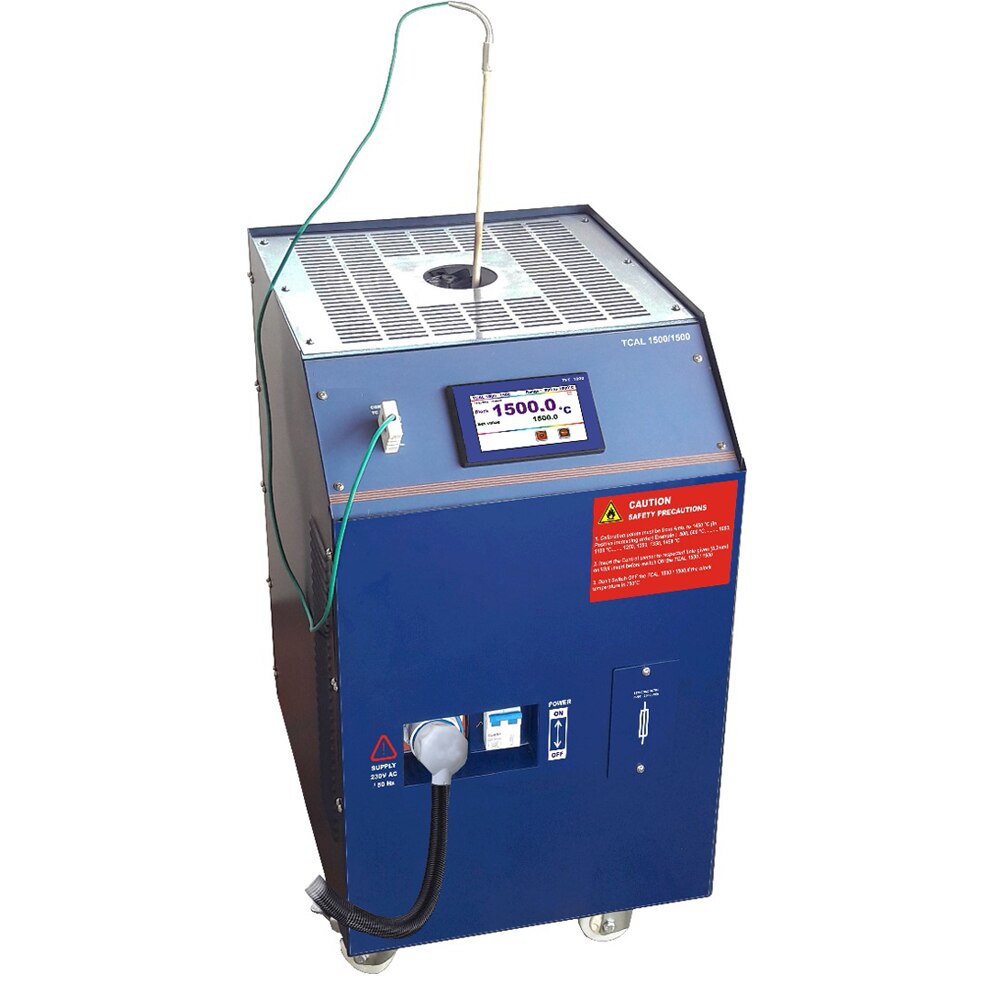

HIGH TEMPERATURE CALIBRATOR TCAL 1500/1500

Available

Description

MODEL : TCAL 1500 / 1500 Temperature Range : 500 °C to 1500 °C Bath Temperature Control : Digital Temperature Controller with Auto Tune PID Algorithm Display : 4.3 inch True TFT display with touch screen Resolution : 0.1 °C Stability : ± 0.5 °C Accuracy : better than ± 0.5 % of reading Temperature Read Out : °C / °F Time to Stabilize : 30 (mins) Heating Time (to Max) : 60 Minutes to 3 ½ Hrs ( Amb. to 1500 °C) Well Dia : 70mm Well Depth : 215mm Inter changeable Thermo Well : 6,8,10,14,18,22, in mm (Approx) Switch Test : Provided PC Interface : RS 485 (optional) Power Supply : 230V AC or 110 V AC 50/60 Hz Power Consumption : 3500VA Dimension (W*D*H) : 520 L X 410 W X 625 H (mm) Instrument Weight (Approx) : 48 Kg (Approx.) with out well insertion

Keywords

Other Products

view all

PRECISION HUMIDITY & TEMPERATURE GENERATOR HCAL 1104U

Model : HCAL 1104U Display : 4.3 inch True TFT touch screen display Humidity Range : 5 to 95% RH Temperature Range : 10 to 50 °C Stability : ± 0.05 ° C/± 0.2% RH @ 25 ° C Resolution : 0.01 %RH / 0.01°C Uniformity : ± 0.2 ° C/± 0.3% RH @ 25 ° C Chamber Size : 230 mm dia X 200 depth Test Chamber Size : 200 mm dia X 170 mm D (8.5 L) Construction : inner chamber SS 310/ outer MS powder coating Dimension : 436 mm L X 676 mm W X 368 mm H(Approx) Weight : 40 kg (Approx) Supply : 230 V AC

RPM INDICATOR RP 491

Model RP 491 3 - 30V DC from Proximity Sensor, Photoelectric Non Contact Input Sensor, Encoder,Potential Free Contacts, Limit Switch etc., Input Speed 3.5 kHz (Max.) Range 0 - 9999 RPM / RPS / RPH Resolution 0.001, 0.01, 0.1,1 RPM / RPS / RPH (selectable) Relay Output 2 NO ,2 NC 5A Rated Relays(power ON Delay & Hysterisis provided) Re Transmission(optional) Opto isolated Analog output 4-20mA or 0- 10V DC Sensor Supply 12V DC (±10%) 50mA Accuracy ± 0.05 % (± 1 count) Display 4 Digit 0.5”seven Segment Red Led Working temperature 0 - 50 ºC Power Supply 90 to 270V AC / DC 50Hz Dimension 96 x 96 x 65 mm Weight 200 grams (Approx.)

HIGH PRECISION PRESSURE CALIBRATOR PCAL 1300/1000

Model : Pcal 1300 / 1000 Bar Range (bar) : 0 to 1000 Bar Pressure media : Oil or Water Pressure pump : HP 01 Display : 128 x 64 COG Graphic LCD with White LED Back light Pressure Port : 2 X 1/4” BSP Female Pump dimension in mm (Appox.) : 340 x 240 X 320 (L X W X H) Resolution (bar) ; 6 digit user selectable Instrument Port : ¼ BSP Male x 10 mm long Instrument dimension : 100 x 100 x 55 (W x H x D) mm Instrument Weight : 400gms (Appox.) Stability time : 1 to 2 mins Accuracy : ± 0.05%FS Pressure units * (selectable) : bar, mbar, Mpa, kpa, kg/cm², inHg, cmHg, mmHg,mH2o, ftH2o,inH2o, cmH2o,mmH2o Pressure Zero : One touch zero provided on front key Pressure Peak : Maximum &minimum with user reset option Pressure overflow : FS X 2 (Max.) Pressure burst : FS X 3 (Max.) Temp.Measure : RTD -PT 100 (2,3,4, wire selectable) Measure : 0-24 mA (scalable) Display scale : -99999 to 99999 counts (for mA measure input) Switch test : Provided Display Hold : One touch hold provided on front key Power Supply : 9V DC ±5% / 200mAh Rechargeable battery with battery life 4hours with out back light( or) 9V DC adapter /230V AC supply operated Pump Weight (gms)(Approx.) : 700 gms Pc Interface : RS 485 Pc Software : Windows based semi automatic calibration software (optional) Pump Model : HP 01 Pressure Range : 0 to 1000 Bar Pressure Media : Oil or Water
