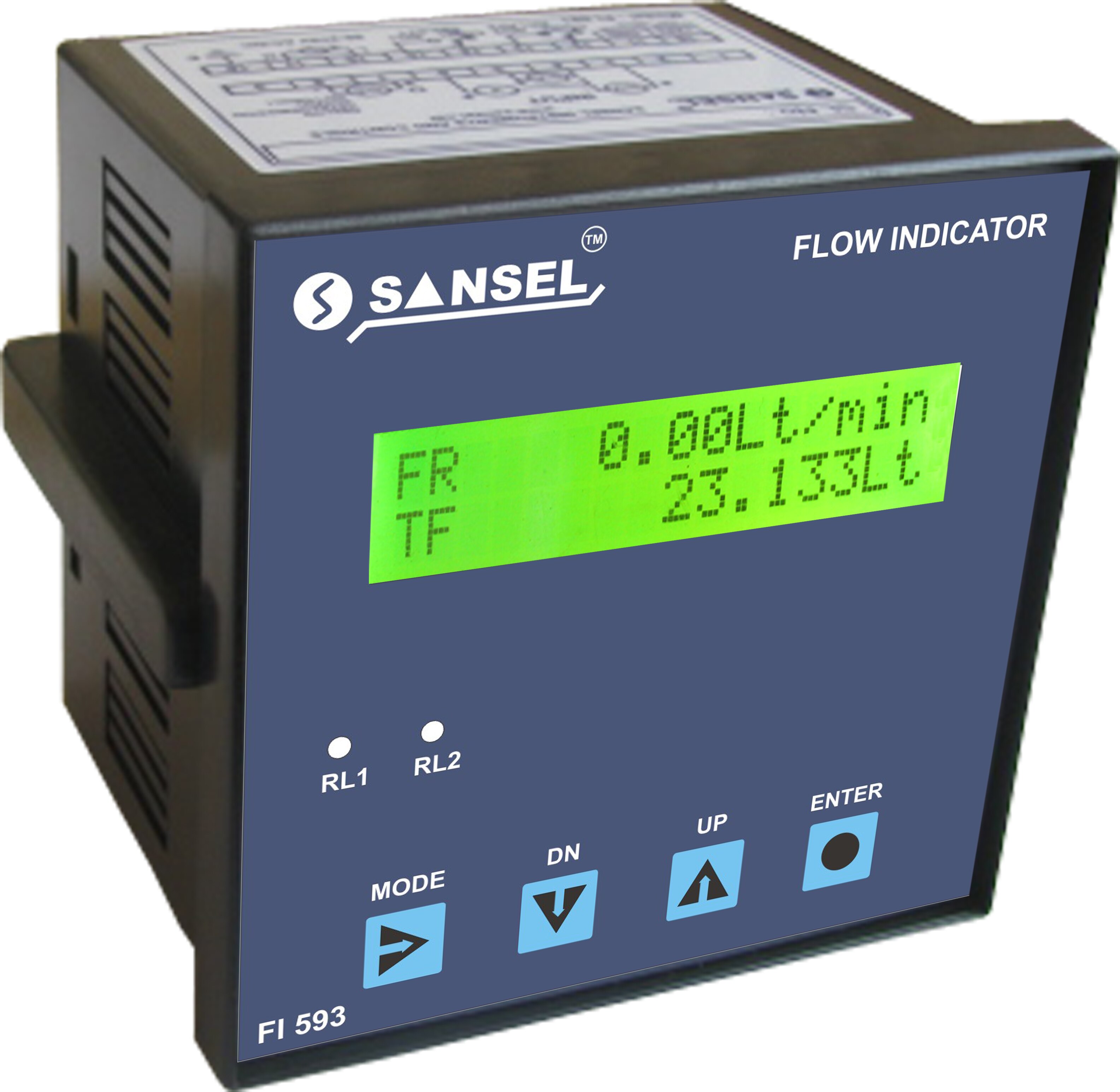

FLOW INDICATOR & TOTALIZER FI 593

Not available

Phone Number

08048035791

Please keep 0 before dialling the number.

Email Address marketing1@sansel.net

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address No.1/46,Ganga Nagar,M.M.D.A Colony Maduravoyal,Chennai-600095

Chennai, India, 600095

Description

Model FI 593 Input (Factory settable) 0-20 mA DC / 0 - 10V DC (any One) Display 16 Character X 2 Line LCD Display Display Modes Flow Rate (FR) & Total Flow (TF) Display Range 0 - 9999(4 Digits) for FR , 0 - 99999999(8 Digits) for TF Voltage Drop 1 V Maximum (Applicable only for current input models) Input Impedance 18K Ohms (Applicable only for voltage input models) Resolution 1 / 0.1 / 0.01 (any One User Selectable) Accuracy at 25 Deg C ± 0.1% of FS Relay Output (optional) 2 relay (5A rated) with individual relay assignment setting Operating Environment 0 to 60 Deg C / 5 to 95 % RH Non Condensing Conversion Modes Linear, Square Root (User Selectable) Units m³ , Liter, Gallons(User Selectable) Flow Rate Time Base Seconds, Minutes, Hours(User Selectable) Sensor Supply 24 V DC / 100mA Max. Power Supply 90 to 270 V AC Frequency 50/60 Hz
