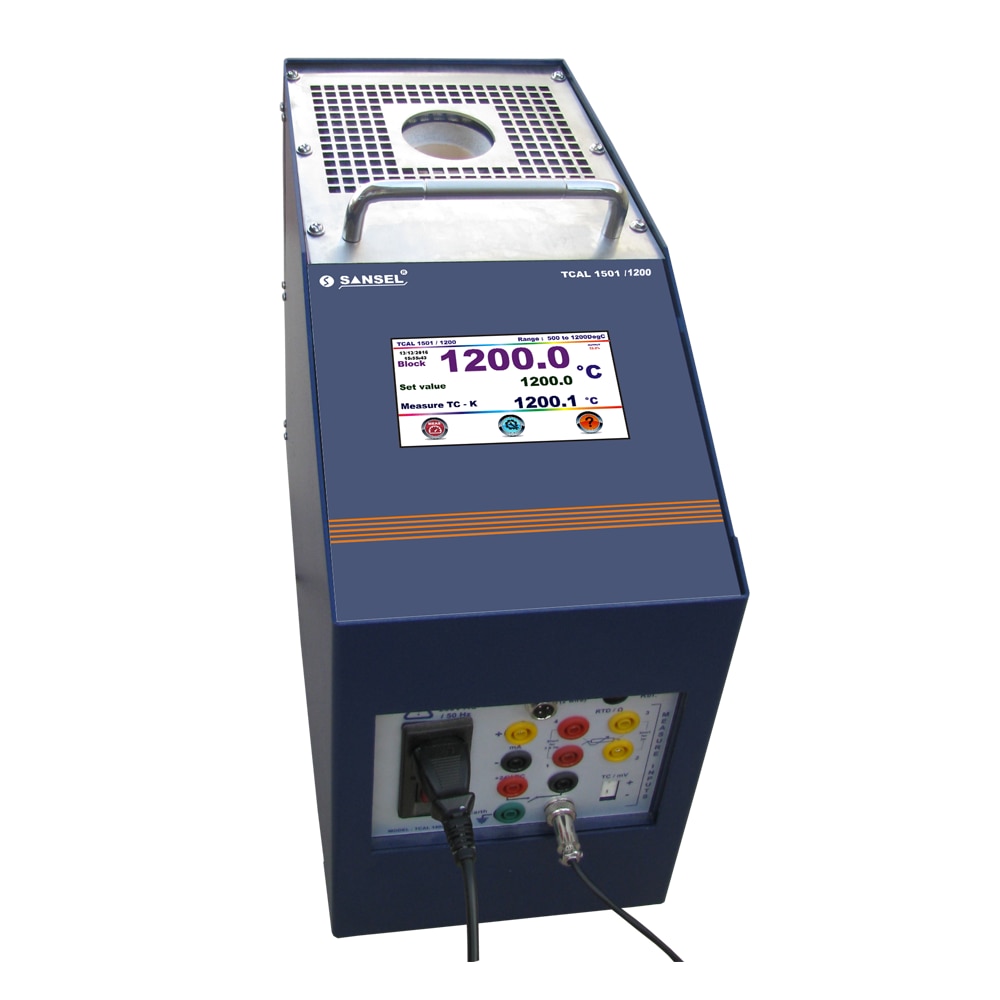

DRY BLOCK TEMPERATURE CALIBRATOR TCAL 1501/1200

Calibrators by SANSEL

DRY BLOCK TEMPERATURE CALIBRATOR TCAL 1501/1200

Available

Description

MODEL : TCAL 1501 / 1200 Display : 4.3 inch True TFT display with touch screen Temperature Range : 500 to 1200 °C Resolution : 0.1 °C Stability : ± 0.3 °C Uniformity : ± 3.0 °C Measure inputs : RTD- PT 100, PT 1000 / TC -J, K, R, S, T, E, B , N / mA /mV / ohms Heating time (mins) : 60 (Amb. to 1200°C) Cooling time (mins) : 120 (1200 to 100°C) Time to Stabilize (mins) : 30 Well Dimension (dia. xdepth) in mm : 39 x 150 Standard Well Hole in mm : 5.2, 6.2, 6.2 ,10.1, 12.1 Dimension (L*W*H)in mm (Approx.) : 340 x 175 x 425 Weight (without well insert) ( Approx.) : 18 kg Power Supply : 110V or 230V AC 50/60Hz Switch test : Provide on front panel Power Consumption : 2200 VA
