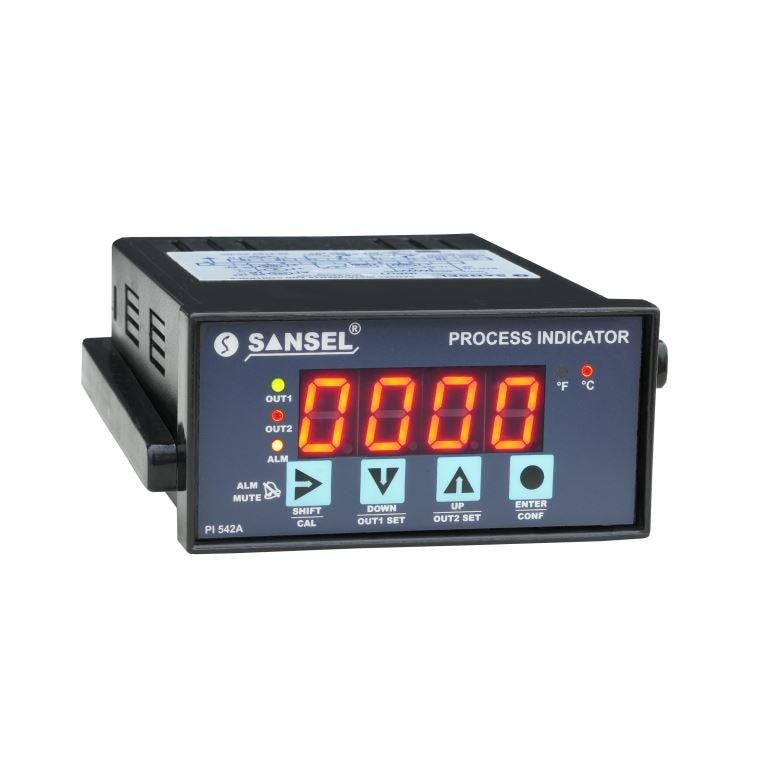

Model PI 542A Display 4 Digit 7 segment RED LED Analog Inputs 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 - 400 OHMS (H & L Limit Programmable) Temperature Inputs RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E Analog Display Range - 1999 to 9999 (H & L Limit Programmable) Temperature Range (H & L Limit Programmable) RTD - PT 100 (-199.9 to 850.0°C / -199.9 to 999.9 °F) TC - J (- 200 to 1200°C / -328 to 2192°F) TC - K (- 200 to 1372°C / -327 to 2501°F) TC - R (- 40 to 1768°C / -40 to 3214°F) TC - S (- 40 to 1768°C / -40 to 3214°F) TC - T (- 200 to 400°C / -328 to 752°F) TC - B (300 to 1820°C / 572 to 3308°F) TC - N (-200 to 1300°C / -327 to 2372°F) TC - E ( -200 to 999.9°C / -327 to 1832°F) Unit selection °C / °F (for RTD & TC inputs) Analog Resolution 0.001 / 0.01 / 0.1 / 1 (Selectable) Temperature Resolution 0.1 / 1 Accuracy ± 0.1 % of FS Filter Constant 1 - 100 % (Adjustable) Display Hold option Peak, hold & average (any one selectable) Hold delay 0 - 999 sec (selectable) Relay Output (optional) 2 Relay (5A rated) with 6 Relay Status Selection, Hysterisis, Cyclic Delay Re Transmission (optional) Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC PC Communication (optional) RS 485 (2 wire) Sensor Supply(external) 24 V DC ±10% @ 100 mA Operating Environment 0 - 50ºC / 5 to 95 % RH Non Condensing Power Supply 90 to 270 V AC / DC / 50 / 60 Hz Over All Dimension 48(H) X 96(W) X 110(D) mm Cut out Dimension 44(H) X 90(W) mm Housing Panel Mountable ABC Plastic Weight 250 grams (Approx.)
